Earthing/Grounding & Lightning Protection Design Software
Accurate finite element calculations. Any size or shape of system. Multilayer soil modelling. Easy to use.
Click the Interactive Demo below
Pricing Options to Suit Everyone
SafeGrid Earthing is available in two edition choices, and you can choose from perpetual or leased licences. A network licence is available.
Prices are in AUD currency and exclude GST. For a quote in USD, GBP or EUR please contact us.
- Actual price may vary based on the exchange rate in place between AUD and at the time of payment processing or invoicing.
AUD
$
AUD
$
USD
$
EUR
€
GBP
£
CAD
$
NZD
$
BRL
R$
CHF
Fr
DKK
Kr.
HKD
HK$
ILS
₪
INR
₹
JPY
¥
MXN
$
NOK
Kr
PLN
zł
SEK
Kr
SGD
$
ZAR
R
Perpetual Licence
Leased Licence
SafeGrid (Basic)
1 Year of Updates & Support Included
Earthing systems design which is easy to use and accurate.
- Multilayer Finite Element Method calculations.
- Non-equipotential grids (accurate).
- Soil modelling from resistivity measurements.
- Custom grids of any shape or size.
- Safety criteria to IEC, IEEE and EN Standards.
*Note to International Buyers:
There will be No Taxes for the purchase of any SafeGrid Products.
SafeGrid (Standard)
AUD9,900Add to cart
1 Year of Updates & Support Included
Complete buried earthing system design package suitable for large grids.
- Multilayer Finite Element Method calculations.
- Non-equipotential grids (accurate).
- Soil modelling from resistivity measurements.
- Custom grids of any shape or size.
- Safety criteria to IEC, IEEE and EN Standards.
+
- Fault current distribution module.
SafeGrid (Professional)
Original price was: AUD18,000.AUD15,000Current price is: AUD15,000.Add to cart
1 Year of Updates & Support Included
Above and below ground conductors with high-frequency capability.
- All features from Standard edition.
+
- Above and below ground earthing.
- High frequencies up to 10 MHz for lightning currents.
- Soil frequency dependency.
- Deals with extremely large and complicated grids (15,000+ conductors).
+
- Lightning shielding (rolling sphere) module.
SafeGrid (Standard)
AUD9,900Add to cart
1 Year of Updates & Support Included
Complete buried earthing system design package suitable for large grids.
- Multilayer Finite Element Method calculations.
- Non-equipotential grids (accurate).
- Soil modelling from resistivity measurements.
- Custom grids of any shape or size. Import from AutoCAD.
- Safety criteria to IEC, IEEE and EN Standards.
- Metric or Imperial units support.
+
- Lightning Shielding Module.
- Fault Current Distribution Module.
SafeGrid (Professional)
Original price was: AUD18,000.AUD15,000Current price is: AUD15,000.Add to cart
1 Year of Updates & Support Included
Above and below ground conductors with transient and high-frequency capability.
- All features from Standard edition.
+
- Above and below ground earthing.
- Transient (time-domain) analysis.
- High frequencies up to 10 MHz for lightning currents.
- Soil frequency dependency.
- Deals with extremely large and complicated grids (15,000+ conductors).
Power Bundle
Original price was: AUD27,380.AUD19,300Current price is: AUD19,300.Add to cart
1 Year of Updates & Support Included
All our electrical power systems software.
Save 30% on individual pricing.
- SafeGrid Earthing (Standard)
+
Want to learn more about SafeGrid Earthing? See all features
See How We Compare
We have benchmarked our SafeGrid Earthing Software results against well-known software XGSLab™ and CDEGS™. We show that the results for grid resistance in multilayer soils up to 5 layers are virtually identical. The results have been analysed.
Why Our Customers Choose SafeGrid Earthing
We are very happy with results we obtain from Safegrid, and our clients are very satisfied and confident with the accurate and detailed solutions we are able to give them using Safregrid.
Above all, we have always received fast and helpful technical support from Electrotechnik, which allows us to overcome quickly our issues.
Thanks to Electrotechnik for their professionalism."
Get Started with SafeGrid Earthing
With a choice of editions, interactive live demo, free trial download, you could be minutes away from fast, accurate calculations.
A Wide Range of Outstanding Features
Features for Earthing & Grounding Systems Design
An intuitive earthing system design process. Enter your data into the modules and easily switch between them to achieve a safe design.
Grids of any shape or size
Design your earthing system using the in-built editor.
Import grids drawn in 2D or 3D AutoCAD (as a DXF file).
Soil resistivity measurements
Automatic multilayer soil modelling from Wenner and Schlumberger resistivity measurements. Analyse and combine multiple traverses.
Fault current distribution
Achieve a safe design by calculating the actual earth grid current from the prospective (maximum) fault level for single or multiple feeders.
Safety criteria
Determine safe touch and step voltage limits in compliance with IEC/TS 60479, EN 50522 and IEEE Standard 80.
Lightning protection module
Easily perform lightning designs based on rolling sphere method calculations.
Multiple conductor types
Model different conductor types and conductor sizes for horizontal conductors and rods.
Multilayer Finite Element Method calculations
Very accurate algorithms have been developed and proven time and time again through field current injection tests.
Grid Z impedance and GPR
Accurate calculations consider both series Z and mutual impedances (non-equipotential grid analysis) in the frequency domain.
Touch and step voltages
Calculates actual surface, touch and step voltages for comparison with permissible limits.
Plots in 2D or 3D
Analyse touch and step voltages produced by the earthing system during fault conditions.
Custom arrangements
Earthing systems of arbitrary shape, size or configurations.

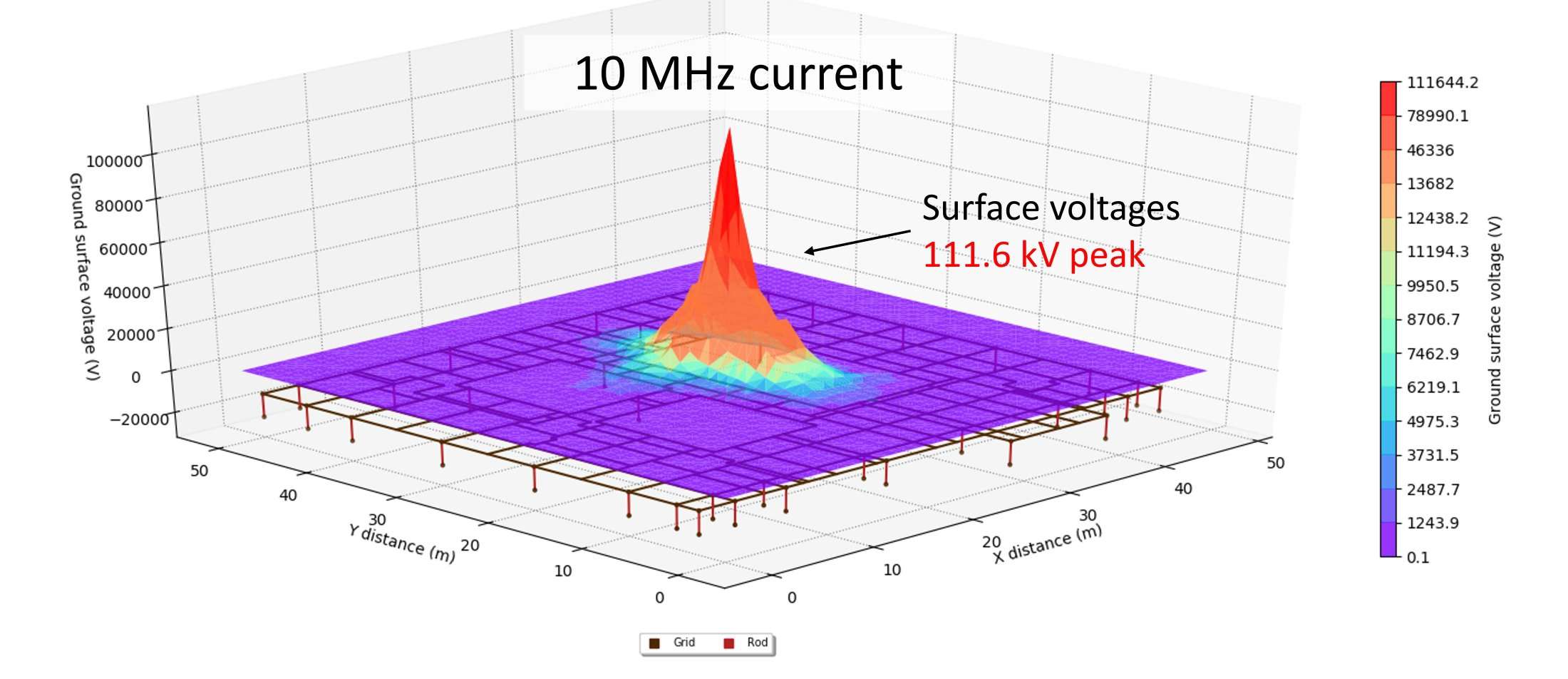

High-frequency and above-ground structures
Accurate solutions to transient and steady state problems up to megahertz for analysing buried and above ground structures.
Lightning currents
Grid response to lightning strikes including current and potential distributions in the frequency-domain can be calculated.
Soil frequency dependency
There are several methods including CIGRE for automatically considering the variation of soil resistivity and permittivity with frequency.
Complex impedance of conductors
Series and mutual complex impedances are considered for both above and below ground conductors.
Multilayer soils
Can model horizontally layered soils with any number of layers of distinct resistivity and relative permittivity.
Lightning shielding design module
Determine the protected areas by defining the custom locations and heights of lightning masts in accordance with Standard IEC 62305.
Rolling Sphere Method
Automatic algorithm which determines the protected areas or zones of protection in 3D.
Protect levels
Define standard Protection Levels such as PL I (20 m), PL II (30 m), PL III (45 m), PL IV (60 m) or user-defined level.
Import site layout drawings
Overlay lightning masts and draw protection zones on construction drawings to a defined scale.
Multiple masts and equipment heights
Define any number of masts and wires (with sag) between masts. Also define groups and multiple equipment heights.
Advanced reporting
Beautiful, comprehensive and easy to understand reports.
PDF and Word formats
Reports are quickly produced directly to PDF and Microsoft Word document formats.
PDF underlay tool
Use the PDF underlay tool to overlay the soil voltage plots onto your construction drawings.
Include your company logo
Personalise the reports by adding your company logo image.
Custom reports
Choose the calculation results to include or exclude from the reports.
Get Started with SafeGrid Earthing
With a choice of editions, interactive live demo, free trial download, you could be minutes away from fast, accurate calculations.
Frequently Asked Questions
Yes, SafeGrid is used worldwide, so our users can model using metric or imperial units.
SafeGrid provides safety limit calculations in accordance with international standards IEEE Std. 80 and IEC 60479. The safety limit calculations prescribed by all other country-specific standards or guides are based on either of these.
Yes the main algorithm takes into account the voltage drops along conductors (quasi-static transversal impedance) due to both the self and mutual impedances and propagation effects.
Yes earthing systems comprising conductors in any arrangement. Multiple earthing systems can be modelled. CAD files (.dxf format) can be imported.
The fault current module is a useful tool to calculate the voltages and currents or short-circuit currents, fault current distributions or split factors. The algorithm is based on a general for of nodal analysis with all mutual impedances considered.
Complex multiple feeder configurations can be modelled consisting of cable circuits or overhead line feeders.
Yes Wenner-based field measurements can be entered and an optimal multilayer soil model calculated automatically.
Suitable for any buried earthing system from single rod in an LV application to a huge EHV substation application for DC and power frequencies.
The SafeGrid main algorithm is
Via instant download. Link to download, activation code and invoice emailed immediately (24/7) after purchase.
Each licence of ELEK SafeGrid can be used by up to 2 users at the same time. You can install the software onto any number of PCs in your business in any locations. A simple online 24/7 activation process is used. The software licence is easily deactivated by any user and moved between PCs.
Updates and Support payment is due after the first year which is 20 % of the current licence price.
We regularly update our software adding new features and improvements.
Yes, you can upgrade from the Standard to Professional edition (for example) at any time, by simply contacting us and paying the difference.
We're Here To Help
Our software is designed to be simple and intuitive, but if you need a helping hand, we have a support team and range of online resources to help get you get up to speed quickly.
First Class Support
Our expert team is on-hand to assist you with any questions you have or assistance you need with our software range.
Top Notch Documentation
Dive into our online software manual to learn everything you need, or check out our easy to follow tutorials.
Get Started with SafeGrid Earthing
With a choice of editions, or a free trial, and instant downloads, you could be minutes away from fast, accurate calculations.
